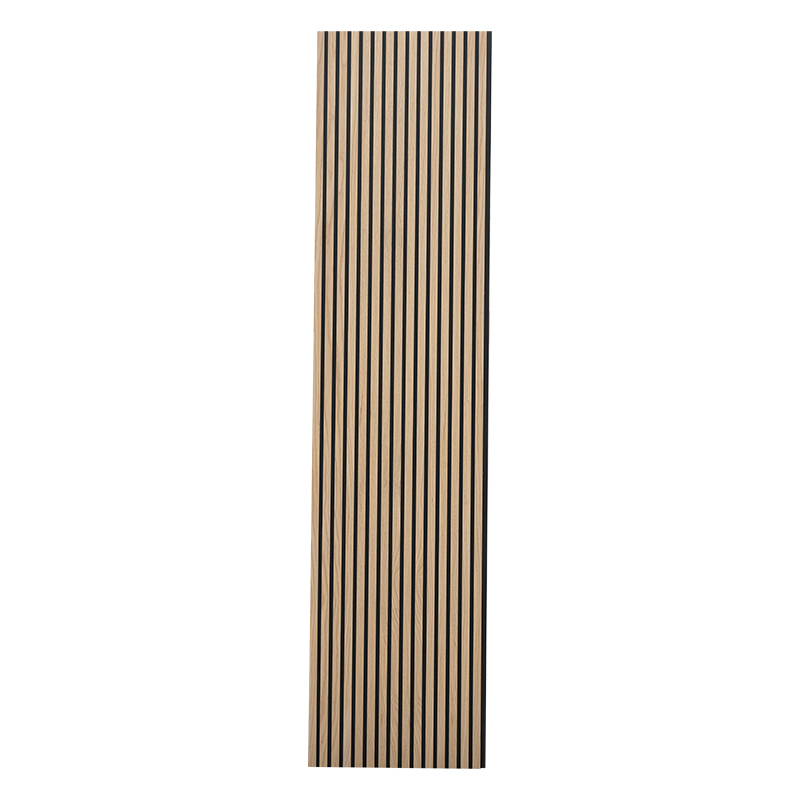

Wood slat acoustic panel, also called as akupanel, is a kind of composited sound absorption structure.
As the sound waves travel to its surface, some of them are reflected in all directions by the wooden slats on the surface, while others are absorbed directly by the polyester felt on the back of the product. Therefore, this product is a combination of diffusion and sound absorption of the dual functions of the product.
Real Timber Veneer · Verified Noise Absorption (NRC 0.85) · Seamless Heights Up to 3 Meters
A signature interior panelling system engineered to balance organic timber warmth with verified acoustic reverberation control. Hand-finished wood veneer slats are precision-mounted onto a high-density black PET acoustic felt backing, delivering rapid speech noise dampening and continuous vertical wall and ceiling cladding for commercial offices, luxury hotels, auditoriums, and private residences.
Grade-A Timber Finishes
Hand-selected natural wood veneers (White Oak, American Walnut, Ash, Teak) protected with commercial-grade UV coating against fading.
Dual Acoustic Control (NRC 0.85)
Synchronized acoustics: hard timber slats diffuse incident high frequencies while the porous 9mm PET backing traps speech reverberation.
Up to 3-Meter Seamless Height
Available in single-run 2400mm, 2600mm, and 3000mm panels to clad floor-to-ceiling heights in one continuous piece without horizontal cut lines.
Commercial Fire & Safety Rating
ASTM E84 Class A fire-rated PET core, FSC® certified wood sourcing, zero formaldehyde off-gassing (E0), and low VOC emissions.
| Standard Profiles | • LD27-13: 27 mm slat width / 13 mm gap width (Classic Slim Architectural Slat) • LD35-15: 35 mm slat width / 15 mm gap width (Bold Commercial Slat) |
| Panel Dimensions | • Width: 600 mm (Standard) / 400 mm • Length: 2400 mm, 2600 mm, 3000 mm, or 1200 mm (Bespoke cut-to-size available) |
| Overall Thickness | 21 mm (12 mm MDF wooden slat core + 9 mm high-density PET acoustic felt) |
| Acoustic Substrate | 100% Recycled Polyester Fiber Felt (ASTM E84 Class A flame-retardant standard) |
| Slat Core & Surfaces | High-density moisture-resistant Black MDF Core finished with Natural Wood Veneer, Melamine Laminate, or Technical Veneer |
| Unit Weight | Approx. 7.5 kg / m² (~10.8 kg per standard 2400 × 600 mm panel) |
| Acoustic Performance | NRC = 0.85 (Direct Mount or 45mm Batten Cavity, tested per ISO 354 / ASTM C423) |
| Container Loading Capacity | • 20'GP Container: Approx. 1,000 m² (~690 panels) • 40'GP Container: Approx. 2,500 m² (~1,730 panels) • 40'HQ Container: Approx. 2,900 m² (~2,000 panels) |
Engineered with a 3-layer architecture: genuine timber veneer vacuum-pressed onto moisture-resistant black MDF slats, permanently bonded onto a 9mm sound-absorbing PET backing.
Panels can be fastened directly onto drywall using screws or construction adhesive, or mounted onto 45mm timber battens with acoustic insulation inside the cavity for maximum low-frequency noise dampening.
Installed across corporate offices, luxury hospitality reception areas, auditorium feature walls, and modern home theaters.
Contact our sales engineering team for container load calculations, custom height profiling (up to 3m), and Thailand export dispatch schedules.
As a premium brand under the Jiangsu SUYIN and Guangdong YUEYIN New Material Technology Co., Ltd. group, LEEDINGS delivers industry-leading manufacturing power. Our operations achieve a monthly output of 990,000 m² and an annual production capacity of 11,880,000 m². We have successfully realized our global manufacturing strategy through our dual-country operations, including multiple facilities in China and a specialized hub in Thailand. To further optimize delivery times and efficiency, we are actively constructing a state-of-the-art, wholly-owned plant, demonstrating our long-term commitment to serving our global partners with uncompromised reliability.
