Features of decorative acoustic ceilings
Dual-Sided Sound Absorption · Unobstructed Plenum Airflow · ASTM E84 Class A Fire Rated

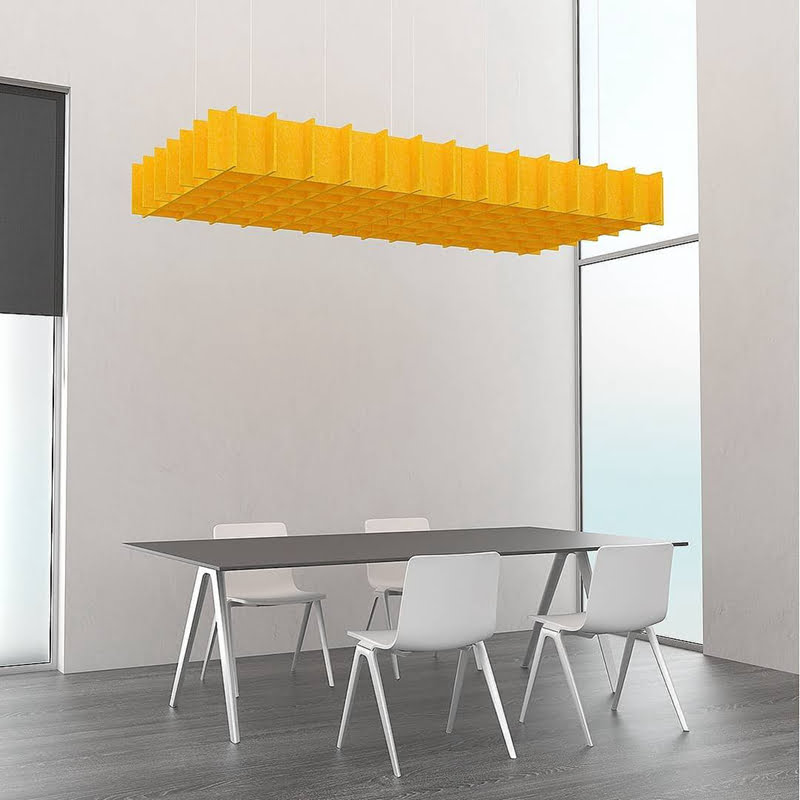

A lightweight, vertically suspended acoustic blade system engineered for high-ceiling architectural volumes and exposed open-plenum structures. With both faces exposed to ambient sound fields, these 100% recyclable polyester baffles deliver superior sound absorption per square foot of ceiling area—eliminating flutter echoes while maintaining unobstructed clearance for HVAC ducts, fire sprinklers, and linear pendant lighting.
Dual-Sided Sabine Absorption
Both faces and exposed edges actively capture rising sound waves, providing up to 2.2× higher acoustic absorption efficiency than flush ceiling tiles.
Zero HVAC & MEP Obstruction
Vertical parallel blade orientation permits uninhibited thermal convection, return-air circulation, and compliant fire sprinkler discharge coverage.
Ultralight Overhead Safety
Weighing only ~1.5–3.2 kg per blade, PET baffles impose minimal structural dead load on open-web steel joists and standard ceiling grid wires.
ASTM E84 Class A Fire Rated
Strict commercial fire compliance (Flame Spread < 25, Smoke Developed < 450) required for public transit hubs, schools, and offices.
| Substrate Material | 100% Recyclable Polyester Fiber (up to 60% post-consumer recycled PET bottles) |
| Standard Baffle Formats | • Blade Lengths: 1200 mm, 2400 mm, 2800 mm (Custom lengths up to 3000 mm) • Blade Depths (Height): 150 mm, 200 mm, 300 mm, 400 mm, 600 mm • Geometric Profiles: Rectilinear blades, continuous sine waves, angled fins, and radius curves |
| Thickness Options | • Solid High-Density PET Core: 12 mm, 18 mm, 24 mm • Laminated / Folded Hollow Box Baffle: 40 mm, 50 mm (Enhanced bass chamber performance) |
| Unit Weight | Approx. 1.2 kg – 3.8 kg per blade (depending on depth, thickness, and hardware selection) |
| Acoustic Performance | Apparent NRC = 0.85 – 1.15 / Equivalent Absorption Area per unit: 1.2–2.4 Sabins per linear meter (ISO 354 / ASTM C423) |
| Fire Retardancy Rating | • USA: ASTM E84 Class A (Flame Spread < 25, Smoke Developed < 450) • Europe: EN 13501-1 Class B-s1, d0 |
| Suspension Hardware | Adjustable stainless steel aircraft wire grippers, Unistrut channel clips, threaded rod adaptors, and T-bar grid attachment hooks |
| Environmental & Air Safety | Zero Formaldehyde (E0), French VOC A+, German AgBB compliant, LBC Red List Free, LEED v4 qualifying |
From understated industrial tones (Charcoal, Silver Gray, Off-White) to vibrant accent hues matching corporate brand standards. Swatch binders and hanging cut samples can be dispatched within 48 hours for design firm approvals.
Operating 79 continuous automated non-woven lines producing over 11,880,000 m² annually across facilities in China and Thailand. We support commercial distributors and specifiers with precision CNC multi-axis contour cutting, pre-slotted mounting tracks, and export-grade master pallet packaging.
Contact our ceiling engineering team for suspension layout calculations, custom CNC wave profiling, and Thailand export container schedules.
